8080000030CF-8080000031CF-8080000030FF-8080000031FF
Type
Applications
Voltage
12,24
Dimensions
L:170 - H:496 - W:170
kit universale del condizionatore d'aria per qualsiasi veicolo per il
lavoro. Se avete bisogno di un impianto di aria condizionata
per la vostra cabina, trattore, macchina per la costruzione speciale o veicolo,
ecc... La nuova linea X-SYSTEM nelle sue diverse versioni può aiutarti ha
trovare il giusto confort.

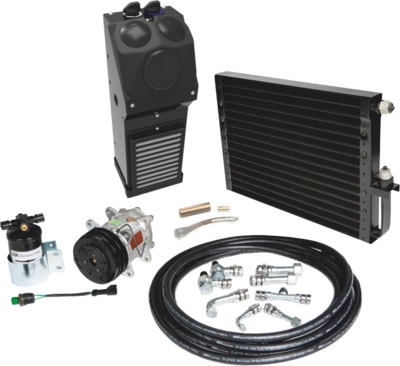

Contenuto nel kit:
HVAC Unit INCLUDED
Install Kit INCLUDED
Condenser INCLUDED
Compressor INCLUDED
Mount Kit INCLUDED
Hose & fittings INCLUDED
Pressure switches INCLUDED
Receiver Dryer INCLUDED
Receiver Dryer Bracket INCLUDED
Wiring INCLUDED
Condenser Fan NOT INCLUDED
Gas R134a NOT INCLUDED
Technical Data
| Code | Voltage (V) | Air (m3/h) | Heating (Kw) | Cooling (Kw) | Amper (A) | Weight (Kg) |
|---|---|---|---|---|---|---|
| 8080000030CF | 12 | 510 | 4 | 5.5 | 20 | 7,8 |
| 8080000030FF | 12 | 510 | - | 5.5 | 20 | 7,8 |
| 8080000031CF | 24 | 530 | 4 | 5.5 | 11 | 7,8 |
| 8080000031FF | 24 | 530 | - | 5.5 | 11 | 7,8 |
| Code | 8080000030CF |
|---|---|
| Voltage (V) | 12 |
| Air (m3/h) | 510 |
| Heating (Kw) | 4 |
| Cooling (Kw) | 5.5 |
| Amper (A) | 20 |
| Weight (Kg) | 7,8 |
| Code | 8080000030FF |
|---|---|
| Voltage (V) | 12 |
| Air (m3/h) | 510 |
| Heating (Kw) | - |
| Cooling (Kw) | 5.5 |
| Amper (A) | 20 |
| Weight (Kg) | 7,8 |
| Code | 8080000031CF |
|---|---|
| Voltage (V) | 24 |
| Air (m3/h) | 530 |
| Heating (Kw) | 4 |
| Cooling (Kw) | 5.5 |
| Amper (A) | 11 |
| Weight (Kg) | 7,8 |
| Code | 8080000031FF |
|---|---|
| Voltage (V) | 24 |
| Air (m3/h) | 530 |
| Heating (Kw) | - |
| Cooling (Kw) | 5.5 |
| Amper (A) | 11 |
| Weight (Kg) | 7,8 |
